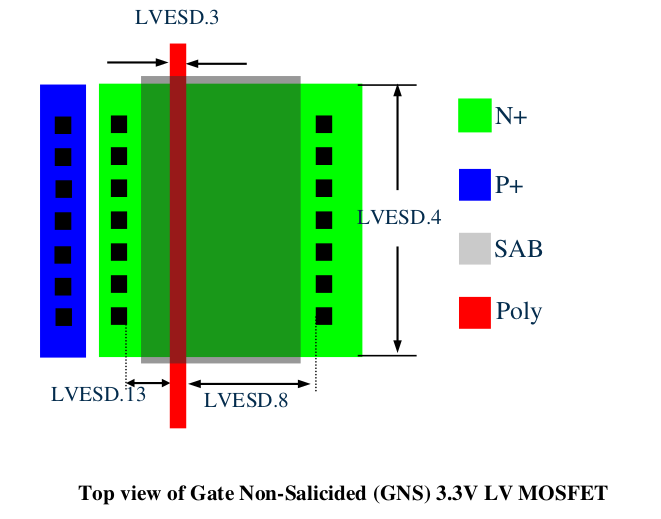

14.4.1 Design Guidelines for 3.3V LV SAB MOSFET Device¶
When using LV MOSFET (NMOS/PMOS) for ESD protection devices, it shall be marked by ESD_MK mark layer. The following layout guidelines are recommended.
RULE NO.  |
DESCRIPTION  |
RULE  |
LVESD.1  |
LV MOSFET used for ESD protection should be enclosured by ESD_MK, ESD_MK must enclose well pick-up implant  |
0  |
LVESD.2*  |
Poly Channel-length for each finger in multi-finger transistors must be same  |
|
LVESD.3 (a)  |
Min. channel length for each finger (Recommended)  |
0.3  |
LVESD.3 (b)  |
Max. channel length for each finger  |
0.5  |
G.LVESD.4 (a)**  |
Recommended finger width for each finger  |
25  |
LVESD.4 (b)  |
Min. finger width for each finger  |
20  |
LVESD.4 (c)  |
Max. finger width for each finger  |
60  |
G.LVESD.5 (a)**  |
Recommended number of fingers share one pick-up ring in multi-finger transistors.  |
8  |
LVESD.5 (b)  |
Max. number of fingers share one pick-up ring in multi-finger Transistors  |
16  |
G.LVESD.6 (a)**  |
Recommended total finger width  |
200  |
LVESD.6 (b)  |
Min. total finger width  |
160  |
LVESD.6 (c)  |
Max. total finger width  |
720  |
LVESD.7  |
SAB should cover drain and source and overlap gate or cover drain only with rule LVESD.7(a) partly overlap poly gate  |
|
LVESD.7 (a)  |
Min/max SAB overlap Poly gate  |
0.05  |
G.LVESD.8 (a)**  |
Recommeded at least one or nearest drain contact to gate edge space (DCGS)  |
2  |
LVESD.8 (b)  |
Min. drain contact to gate edge space (DCGS)  |
1  |
LVESD.8 (c)  |
Max. of at least one or nearest drain contact to gate edge space (DCGS)  |
4  |
G_LVESD.10  |
Recommended well tap COMP to active COMP space in channel length direction.  |
2  |
LVESD.11  |
Source COMP must enclose by LVS_Source  |
0  |
LVESD.12  |
LVS_Source must butt to Poly edge  |
0  |
G.LVESD.13**  |
Recommended at least one or nearest source contact to gate edge space (SCGS) when SAB cover drain-source over poly gate  |
0.7  |
LVESD.13(a)  |
Min. source contact to gate edge space (SCGS) when SAB cover drain-source over poly gate  |
0.15  |
LVESD.13(b)  |
Max. of at least one or nearest source contact to gate edge space (SCGS) when SAB cover drain-source over poly gate  |
1  |
COLVESD.7  |
Recommended/max. salicided block edge to at least one or nearest contact (CA)  |
0.22  |
COLVESD.7(a)  |
Min. salicided block edge to contact (CA)  |
0.15  |
