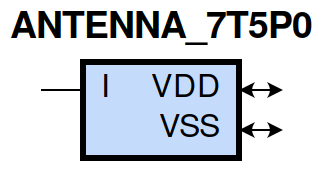

gf180mcu_fd_sc_mcu7t5v0__antenna symbol

gf180mcu_fd_sc_mcu7t5v0__antenna symbol

gf180mcu_fd_sc_mcu7t5v0__antenna schematic

gf180mcu_fd_sc_mcu7t5v0__antenna schematic

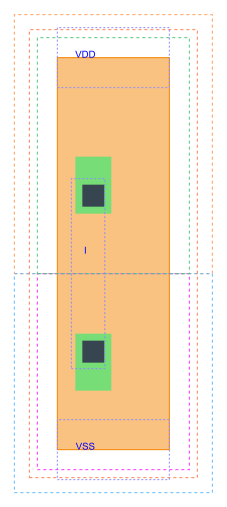

gf180mcu_fd_sc_mcu7t5v0__antenna layout

gf180mcu_fd_sc_mcu7t5v0__antenna layout

ANTENNA is an antenna cell


Attributes

Attribute

Value

area

4.390400 µm2

FUNCTIONAL SCHEMATIC
PIN CAPACITANCE (pf)

Pin

Type

Capacitance (pf)

I

input

0.0011

DYNAMIC ENERGY

Input Pin

When Condition

Tin (ns)

Energy (uW/MHz)

I(LH)

default

0.0100

-0.0092

I(HL)

default

0.0100

0.0092

LEAKAGE POWER

When Condition

Power (nW)

!I

0.0500

!I

0.0750

I

0.0750

I

0.0500
