gf180mcu_fd_sc_mcu7t5v0__tieh¶

gf180mcu_fd_sc_mcu7t5v0__tieh symbol

gf180mcu_fd_sc_mcu7t5v0__tieh schematic

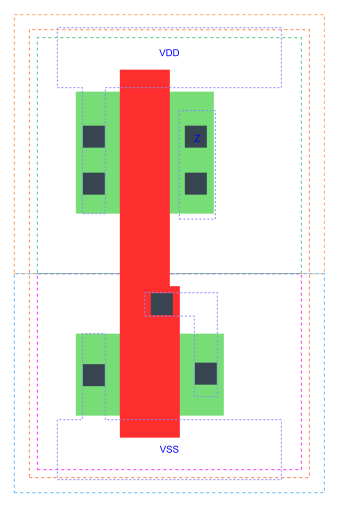

gf180mcu_fd_sc_mcu7t5v0__tieh layout

TIEH is a high level generator

Attributes

Attribute	Value
area	8.780800 µm²

OUTPUT FUNCTIONS

Output Pin	Function
Z	1

TRUTH TABLE FOR Z

Z

FUNCTIONAL SCHEMATIC
LEAKAGE POWER

When Condition	Power (nW)
default	0.0500
