gf180mcu_fd_sc_mcu7t5v0__tiel¶

gf180mcu_fd_sc_mcu7t5v0__tiel symbol

gf180mcu_fd_sc_mcu7t5v0__tiel schematic

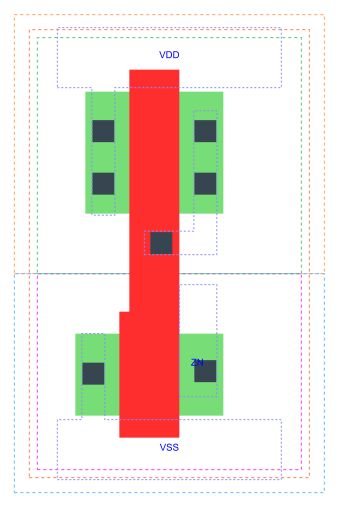

gf180mcu_fd_sc_mcu7t5v0__tiel layout

TIEL is a low level generator

Attributes

Attribute	Value
area	8.780800 µm²

OUTPUT FUNCTIONS

Output Pin	Function
ZN	0

TRUTH TABLE FOR ZN

ZN

FUNCTIONAL SCHEMATIC
LEAKAGE POWER

When Condition	Power (nW)
default	0.0499
