gf180mcu_fd_sc_mcu9t5v0__filltie

gf180mcu_fd_sc_mcu9t5v0__filltie symbol

gf180mcu_fd_sc_mcu9t5v0__filltie schematic

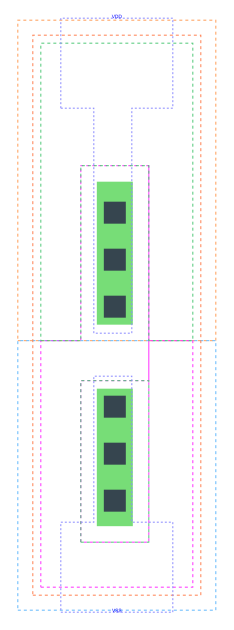

gf180mcu_fd_sc_mcu9t5v0__filltie layout

FILLTIE is a filler with well and substrate tap

Attributes

Attribute	Value
area	5.644800 µm2

FUNCTIONAL SCHEMATIC

LEAKAGE POWER

When Condition	Power (nW)
default	0.0500
