gf180mcu_fd_sc_mcu9t5v0__hold

gf180mcu_fd_sc_mcu9t5v0__hold symbol

gf180mcu_fd_sc_mcu9t5v0__hold symbol

gf180mcu_fd_sc_mcu9t5v0__hold schematic

gf180mcu_fd_sc_mcu9t5v0__hold schematic

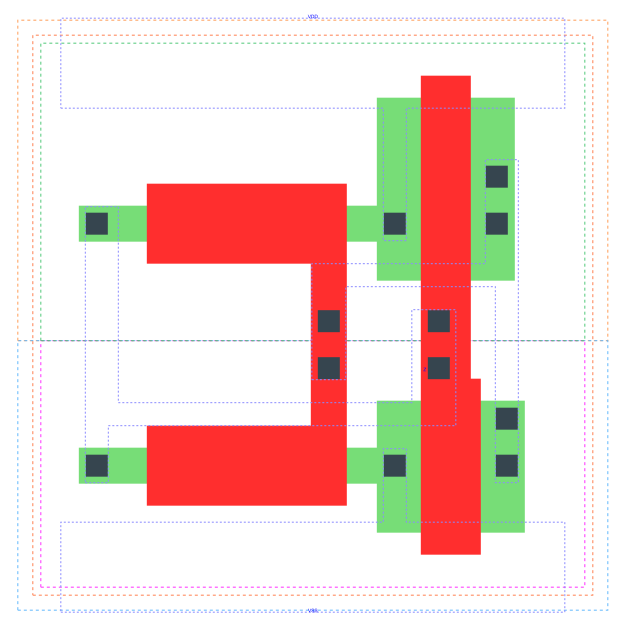

gf180mcu_fd_sc_mcu9t5v0__hold layout

gf180mcu_fd_sc_mcu9t5v0__hold layout
HOLD is a state holder cell

Attributes

Attribute

Value

area

25.401600 µm2

area

bus_hold µm2

OUTPUT FUNCTIONS

Output Pin

Function

Z

Z

TRUTH TABLE FOR Z

Z

FUNCTIONAL SCHEMATIC
PIN CAPACITANCE (pf)

Pin

Type

Capacitance (pf)

Z

inout

0.0199

DYNAMIC ENERGY

Input Pin

When Condition

Tin (ns)

Energy (uW/MHz)

Z(HL)

default

0.0100

0.2470

Z(LH)

default

0.0100

0.0013

LEAKAGE POWER

When Condition

Power (nW)

!Z

0.1009

Z

0.1009
