14.5.2 ESD Performance from 3.3V LV N+/PWELL diode¶

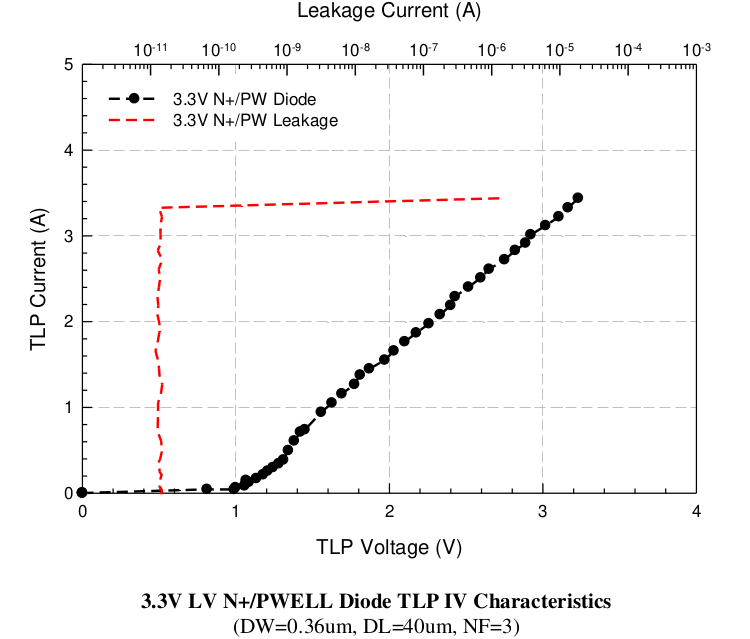

ESD Performance from 3.3V LV N+/PWELL diode is summarized in following table. The TLP data for 3.3V LV N+/PWELL diode is showed in below.
ESD Parameter |
Parameter Value |
Second Breakdown Current (It2) |
~27.5mA/um |
Second Breakdown Voltage (Vt2) |
~3.1V |
