14.5.4. ESD Performance from 3.3V LV NWELL/PSUB diode¶

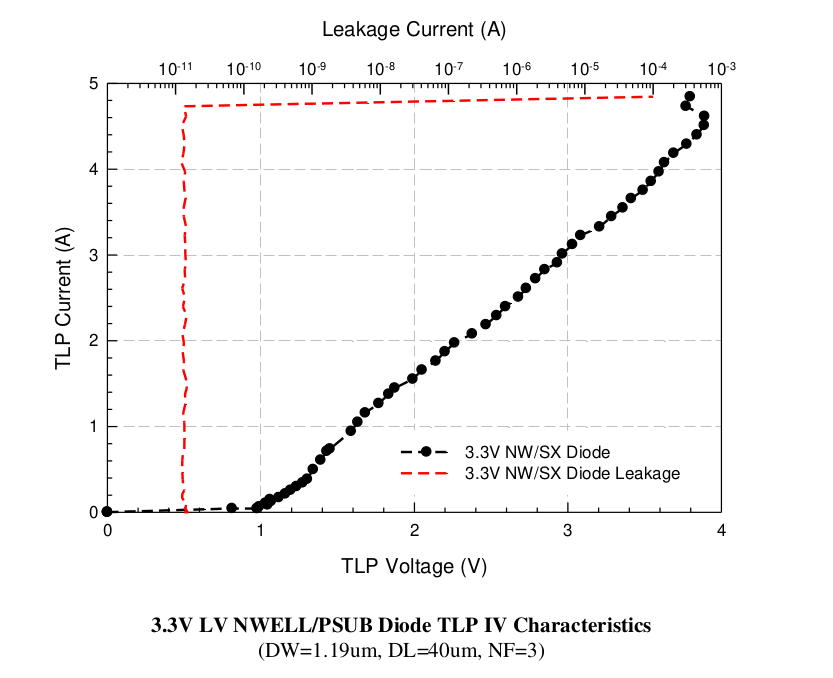

ESD Performance from 3.3V LV NWELL/PSUB diode is summarized in following table. The TLP data for 3.3V LV NWELL/PSUB diode is showed in below.
ESD Parameter |
Parameter Value |
Second Breakdown Current (It2) |
~39.1mA/um |
Second Breakdown Voltage (Vt2) |
~3.7V |
