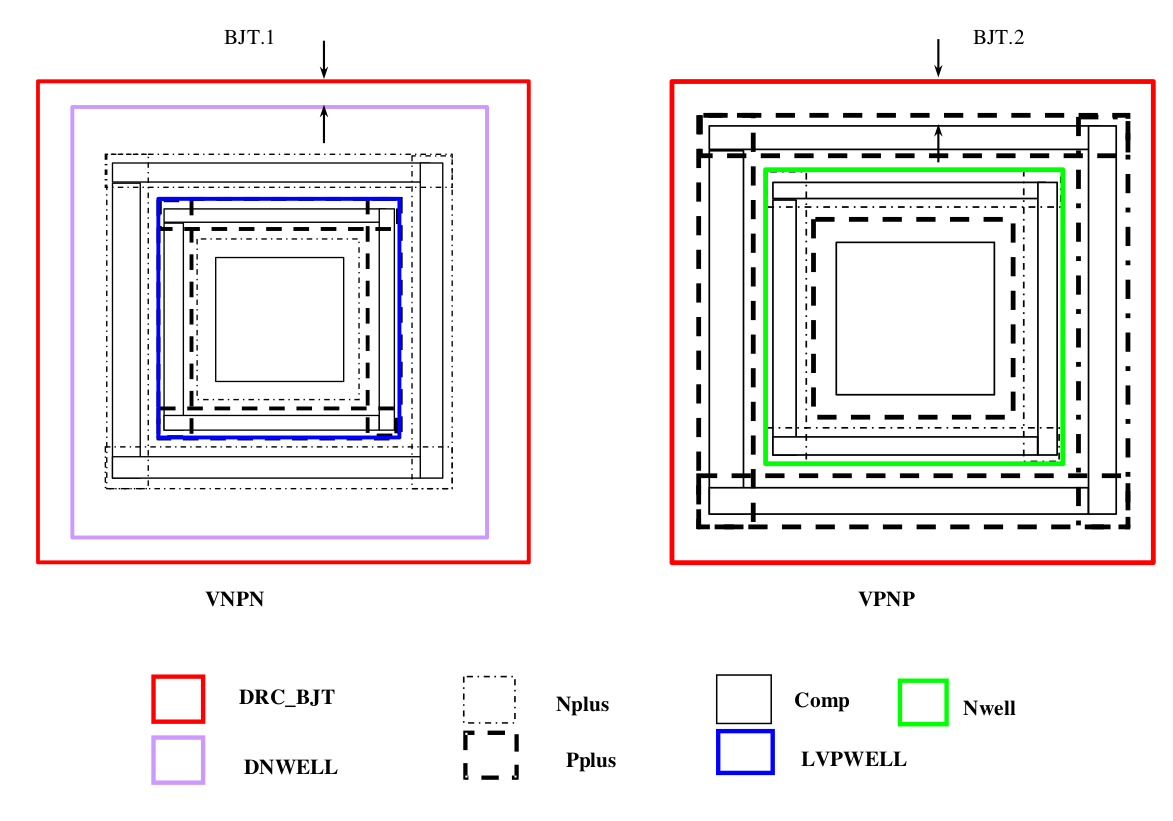

10.7 DRC_BJT Mark Layer¶
This layer is used to mark vertical NPN and PNP transistors to avoid design rule violation.
RULE NO. |
DESCRIPTION |
LAYOUT RULE |
Layer |
DRC_BJT — Marking for Vertical NPN and PNP BJT |
|
BJT.1 |
Min. DRC_BJT overlap of DNWELL for NPN BJT |
0 |
BJT.2 |
Min. DRC_BJT overlap of PCOM in Psub |
0 |
BJT.3 |
Minimum space of DRC_BJT layer to unrelated COMP |
0.1 |
