10.9 LVS_BJT Mark Layer¶

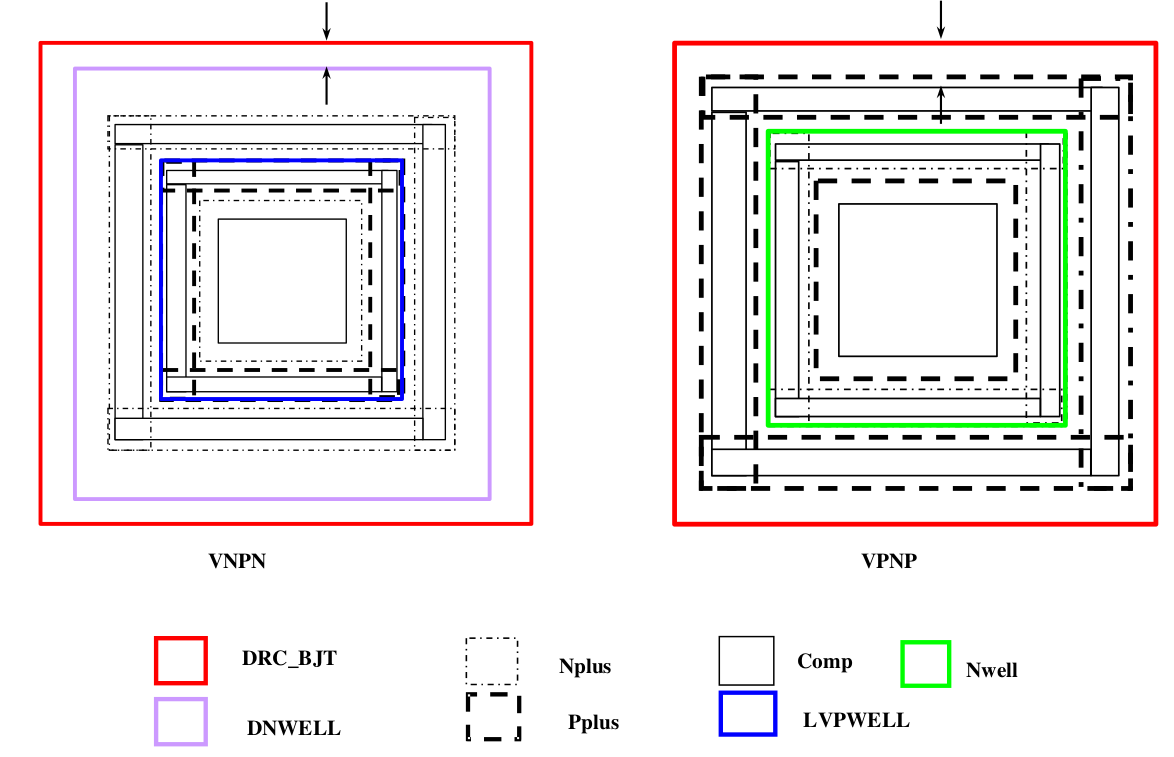

This layer is used in LVS tool to identify Emitter, Base, and Collector of NPN and PNP transistor.
RULE NO. |
DESCRIPTION |
LAYOUT RULE |
Layer |
LVS_BJT |
|
LVS_BJT.1 |
Minimum LVS_BJT enclosure of NPN or PNP Emitter COMP layers |
0 |
