10.12.1 10V LDNMOS rules

This is to define N type asymmetrical 10V LDMOS device (LDNMOS). Below is a summary table as how to identify the device. All this kind of device’s well share the same potential with P-substrate.

High Voltage LDMOS

Items	Layers or Logic operations for identifying the device and its nodes
LDNMOS	Device under LDMOS_XTOR with Dualgate and COMP, Poly2, MVSD
LDNMOS Drain	MVSD
LDNMOS Source	((Nplus AND COMP) Interact (((Poly2 AND Dualgate) AND LDMOS_XTOR) AND MVSD)) NOT Poly2
LDNMOS Channel Length	MVSD space to POLY2 edge in COMP
LDNMOS Channel Width	LDNMOS COMP width intersecting with (((POLY2 AND Dualgate) AND (LDMOS_XTOR Interact MVSD))”

LDMOS RULES

Rule NO	Description	Layout Rule
MDN.1	Min MVSD width (for litho purpose)	1
MDN.2a	Min MVSD space [Same Potential]	1
MDN.2b	Min MVSD space [Diff Potential]	2
MDN.3a	Min transistor channel length	0.6
MDN.3b	Max transistor channel length	20
MDN.4a	Min transistor channel width	4
MDN.4b	Max transistor channel width	50
MDN.5ai	Min PCOMP (Pplus AND COMP) space to LDNMOS Drain MVSD (source and body tap non-butted) PCOMP (Pplus AND COMP) intercept with LDNMOS Drain MVSD is not allowed	1
MDN.5aii	Min PCOMP (Pplus AND COMP) space to LDNMOS Drain MVSD (source and body tap butted) PCOMP (Pplus AND COMP) intercept with LDNMOS Drain MVSD is not allowed	0.92
MDN.5b	Min PCOMP (Pplus AND COMP) space to LDNMOS Source (Nplus AND COMP) Use butted source and p-substrate tab otherwise and that is good for Latch-up immunity as well.	0.4
MDN.5c	Maximum distance of the nearest edge of the substrate tab from NCOMP edge	15
MDN.6	ALL LDNMOS shall be covered by Dualgate layer
MDN.6a	Min Dualgate enclose NCOMP	0.5
MDN.7	Each LDNMOS shall be covered by LDMOS_XTOR (GDS#226) mark layer
MDN.7a	Min LDMOS_XTOR enclose Dualgate	0
MDN.8a	Min LDNMOS drain MVSD space to any other equal potential Nwell space	1
MDN.8b	Min LDNMOS drain MVSD space to any other different potential Nwell space	2
MDN.9	Min LDNMOS drain MVSD space to NCOMP (Nplus AND COMP) outside LDNMOS drain MVSD	4
MDN.10	POLY2 rules
MDN.10a	Min LDNMOS POLY2 width	1.2
MDN.10b	Min POLY2 extension beyond COMP in the width direction of the transistor (other than the LDNMOS drain direction)	0.4
MDN.10c	Min/Max POLY2 extension beyond COMP on the field towards LDNMOS drain COMP Direction	0.2
MDN.10d	Min/Max POLY2 on field space to LDNMOS drain COMP	0.16
MDN.10ei	Min POLY2 space to Psub tap (source and body tap non-butted)	0.4
MDN.10eii	Min POLY2 space to Psub tap (source and body tap butted)	0.32
MDN.10f	Poly2 interconnect in HV region (LDMOS_XTOR marked region) not allowed. Also, any Poly2 interconnect with “poly2 to substrate” potential greater than 6V is not Allowed)
MDN.11	Min/Max MVSD overlap channel COMP ((((LDMOS_XTOR AND MVSD) AND COMP) AND POLY2) AND Nplus)	0.4
MDN.12	Min MVSD enclose NCOMP in the LDNMOS drain and in the direction along the transistor width.	0.5
MDN.13	Wide width transistor can be used with multi finger type with following rules:
MDN.13a	Max single finger width	50
MDN.13b	Layout shall have alternative source & drain
MDN.13c	Both sides of the transistor shall be terminated by source
MDN.13d	Every two poly fingers shall be surrounded by a P-sub guard ring. (Exclude the case when each LDNMOS transistor have full width butting to well tap)
MDN.14	Min MVSD space to any DNWELL	6
MDN.15a	Min LDNMOS drain COMP width	0.22
MDN.15b	Min LDNMOS drain COMP enclose contact	0
MDN.16	Others unlisted layer like Nplus, Pplus, CONTACT, Metal, VIA, shall follow MV rules listed in section 7.0
MDN.17	It is recommended to surround the LDNMOS transistor with non-broken Psub guard ring Guideline to improve the latch up immunity.

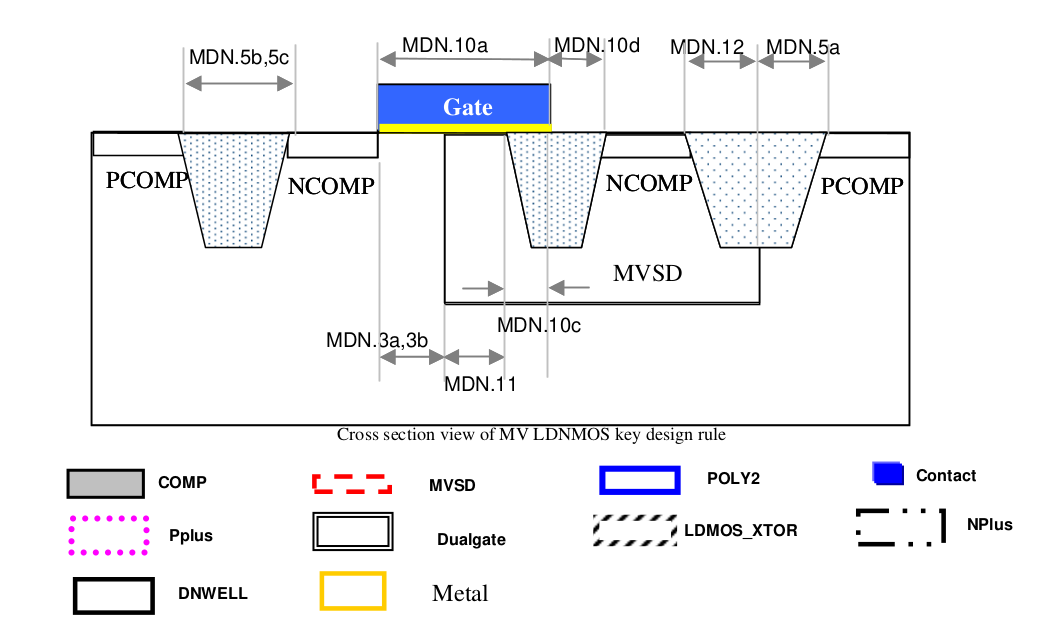

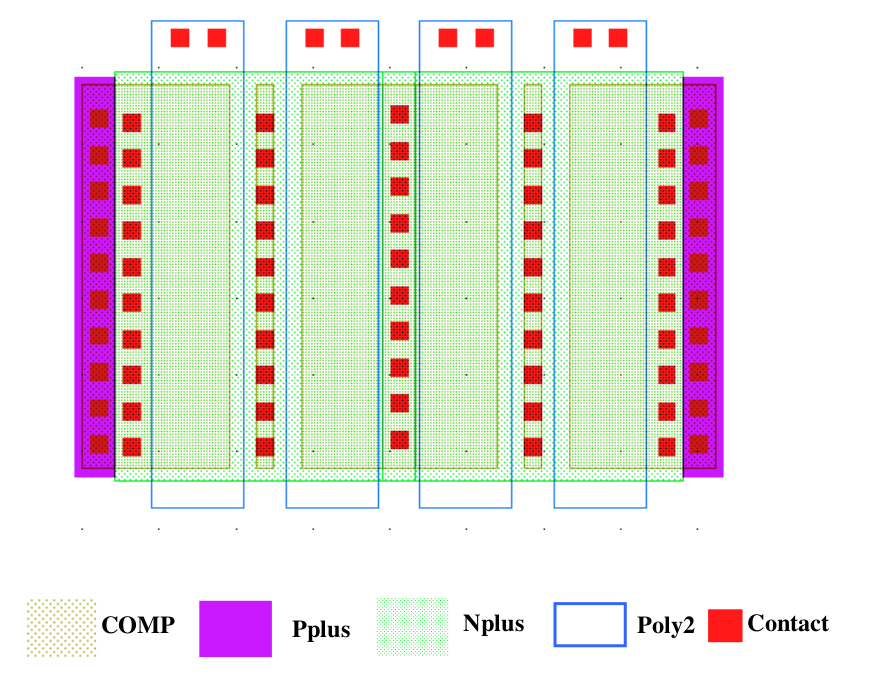

Rule MDN.13d when each LDNMOS transistor has full width butting to well tap

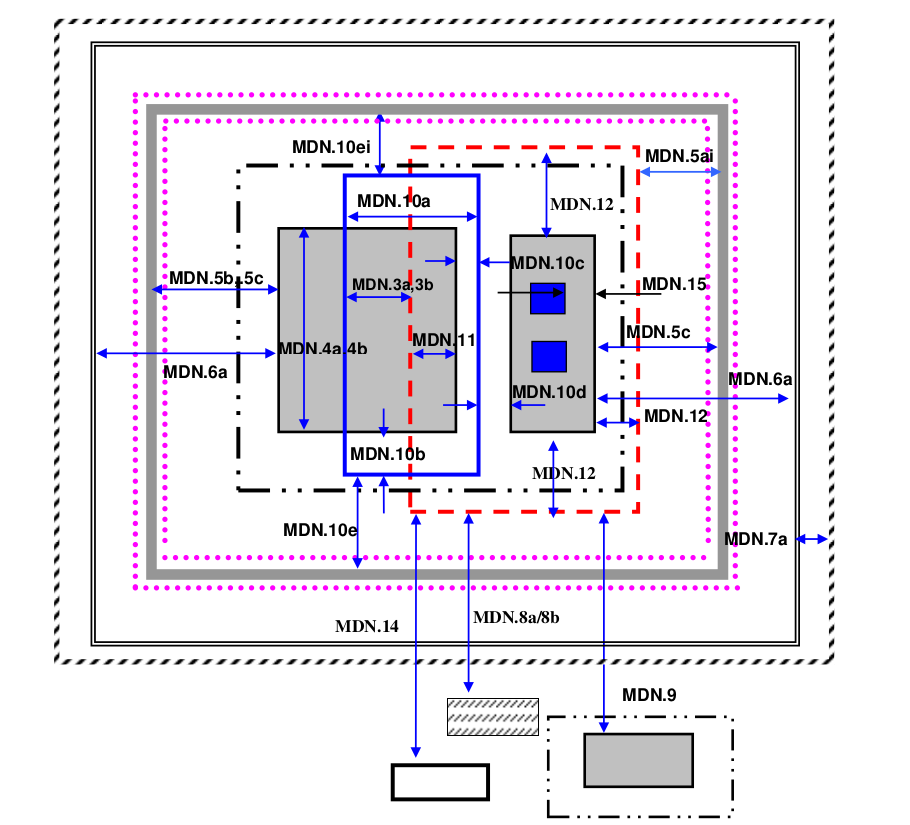

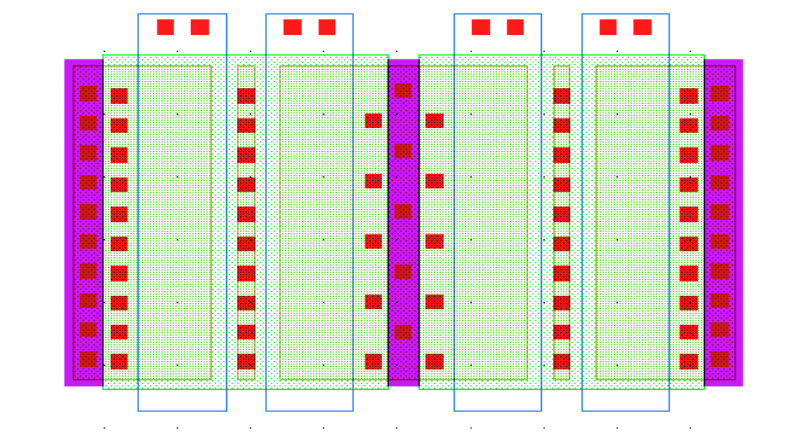

In below example, not every transistor has full width butting to well tap, it violate rule MDN.13d
